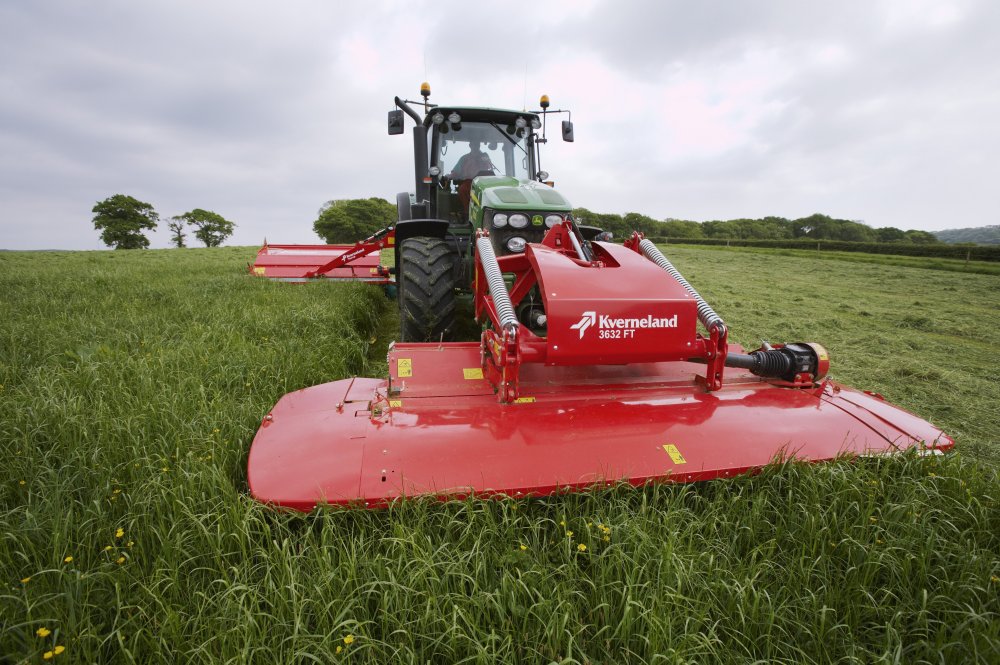

格兰3628 FT/FN – 3632 FT/FR/FN – 3636 FT/FR割草压扁机

Front mounted mower conditioners with SemiSwing steel tines, nylon tines or roller conditioning.

Working widths of 2.81, 3.18 and 3.57m.

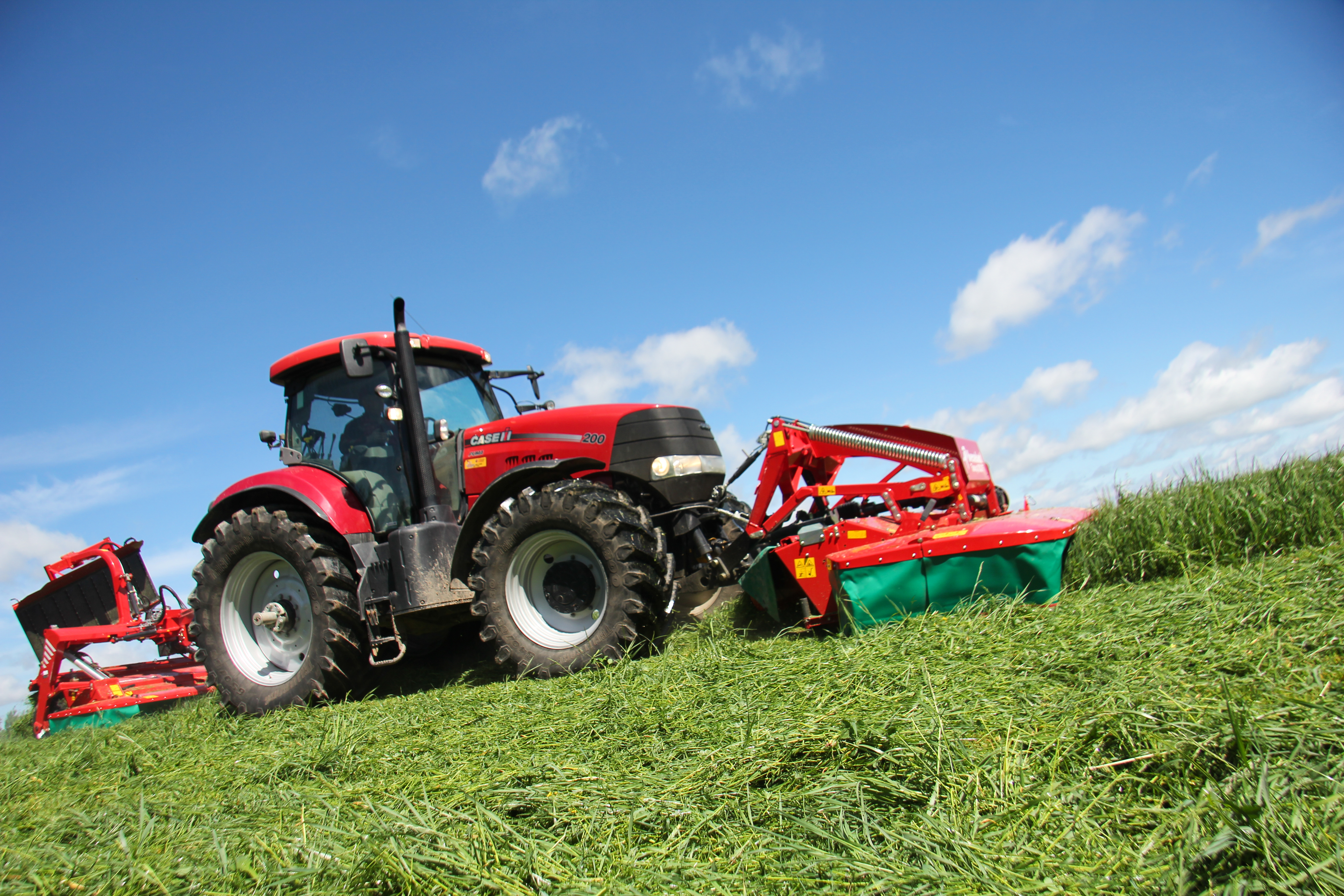

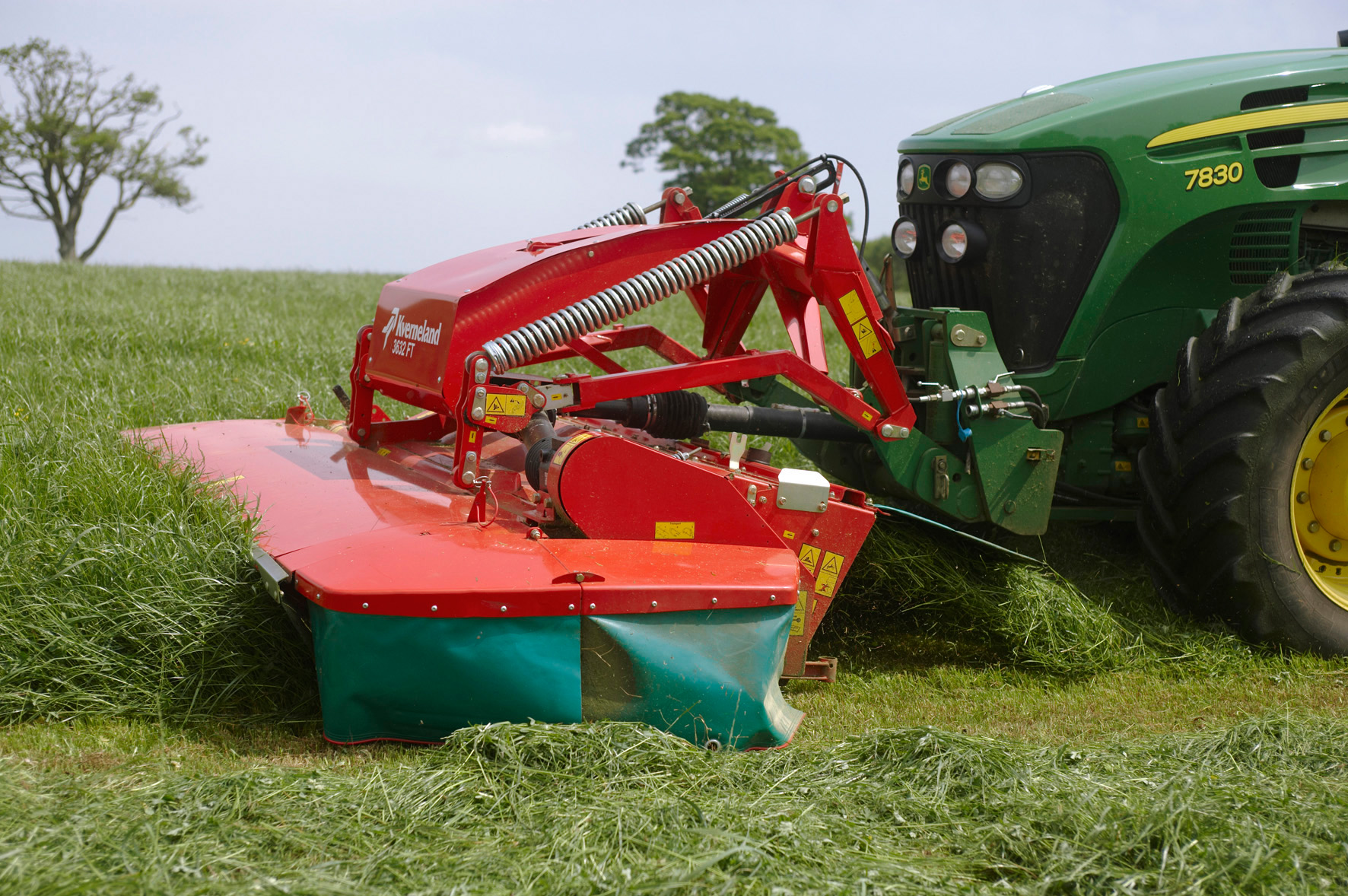

Front Mounted Disc Mower Conditioners

Kverneland 3600 front mounted machines can be used in combination with a variety of mower conditioners, including the 4300 series, 3132 MT, the 5090 MT, or on its own, making these extremely versatile machines. With a working width of 2.80-3.60m, the capacity of these machines is substantial.

The Advantages:

  • 2.80, 3.20 and 3.60m working width

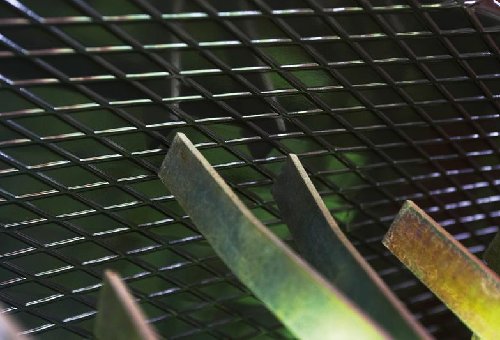

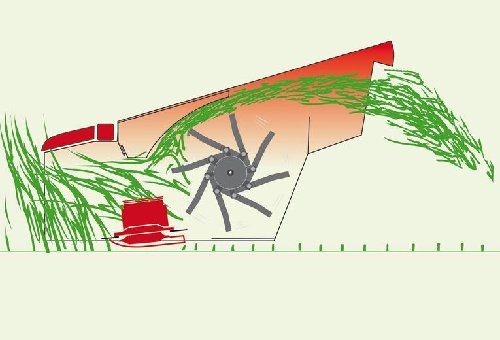

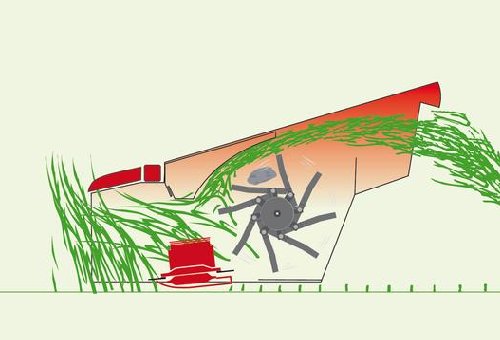

  • SemiSwing Steel Tine Conditioning
  • Chevron Roller Conditioning
  • Nylon Tine Conditioning

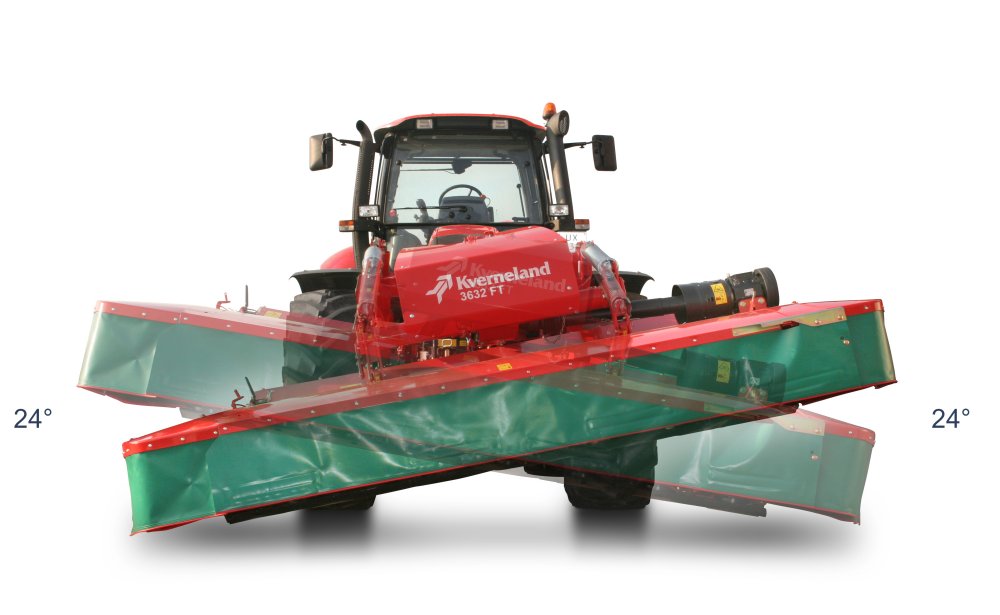

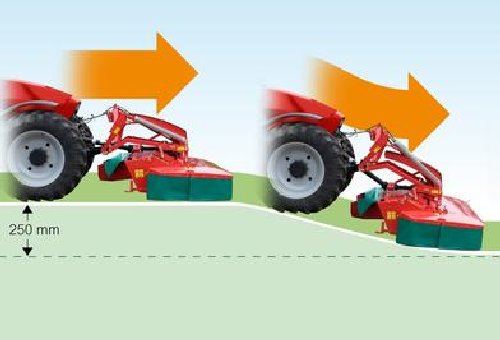

  • Innovative Suspension Design
  • Kverneland ActiveLift Solution

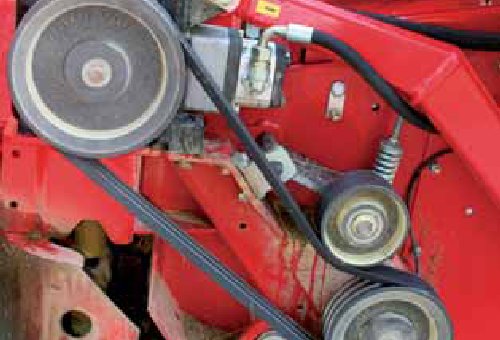

  • Variable Conditioner Rotor Speed

Technical Specifications:

  Working Width Number of Discs Conditioner Power Requirements, min.
3628 FT 2.81m 7 SemiSwing Steel Tines 50/70 kW/hp
3628 FN 2.81m 7 Nylon Tine Conditioning 50/70 kW/hp

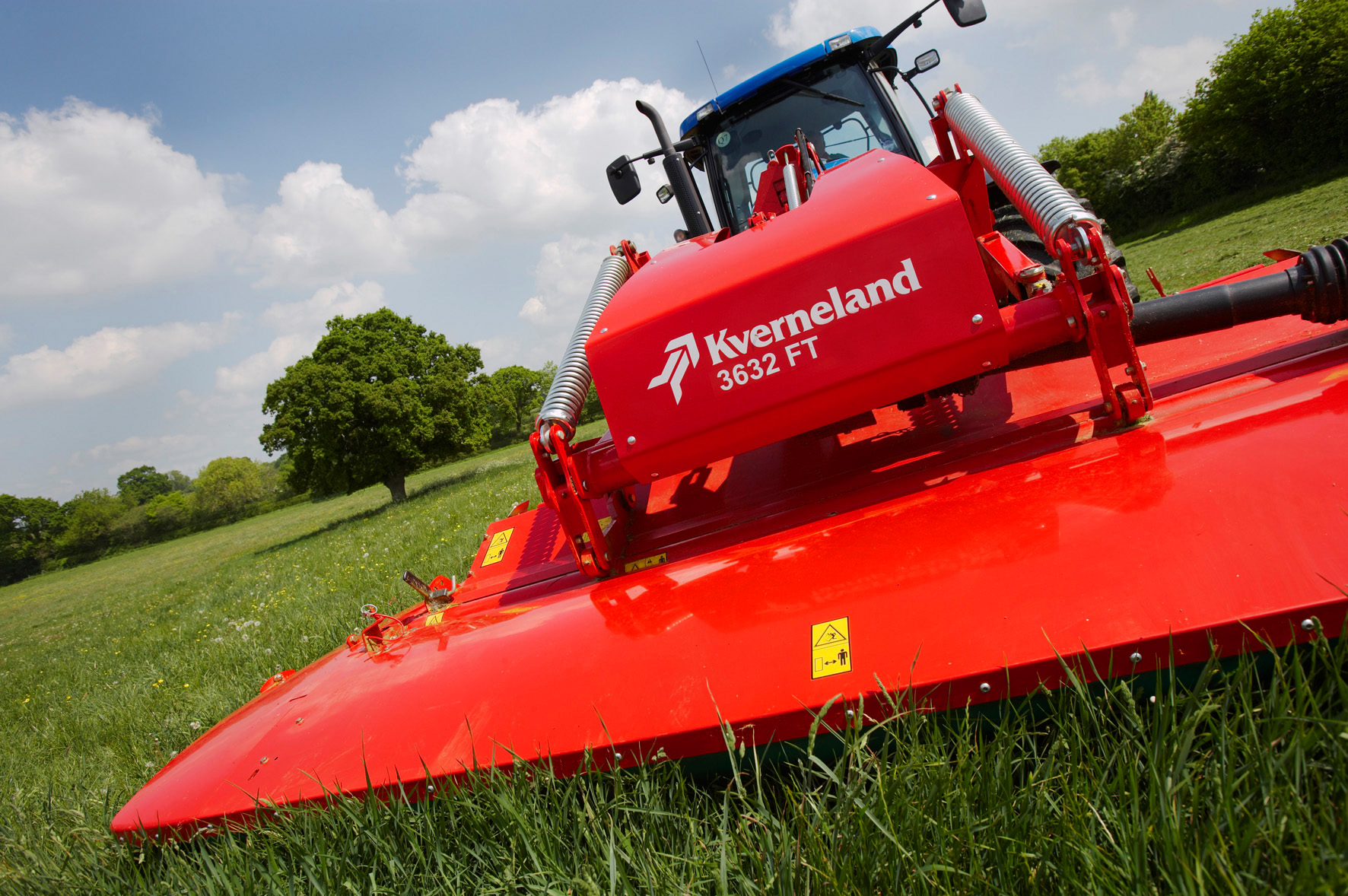

3632 FT 3.16m 8 SemiSwing Steel Tines 60/80 kW/hp
3632 FR 3.16m 8 Roller Conditioning 60/80 kW/hp

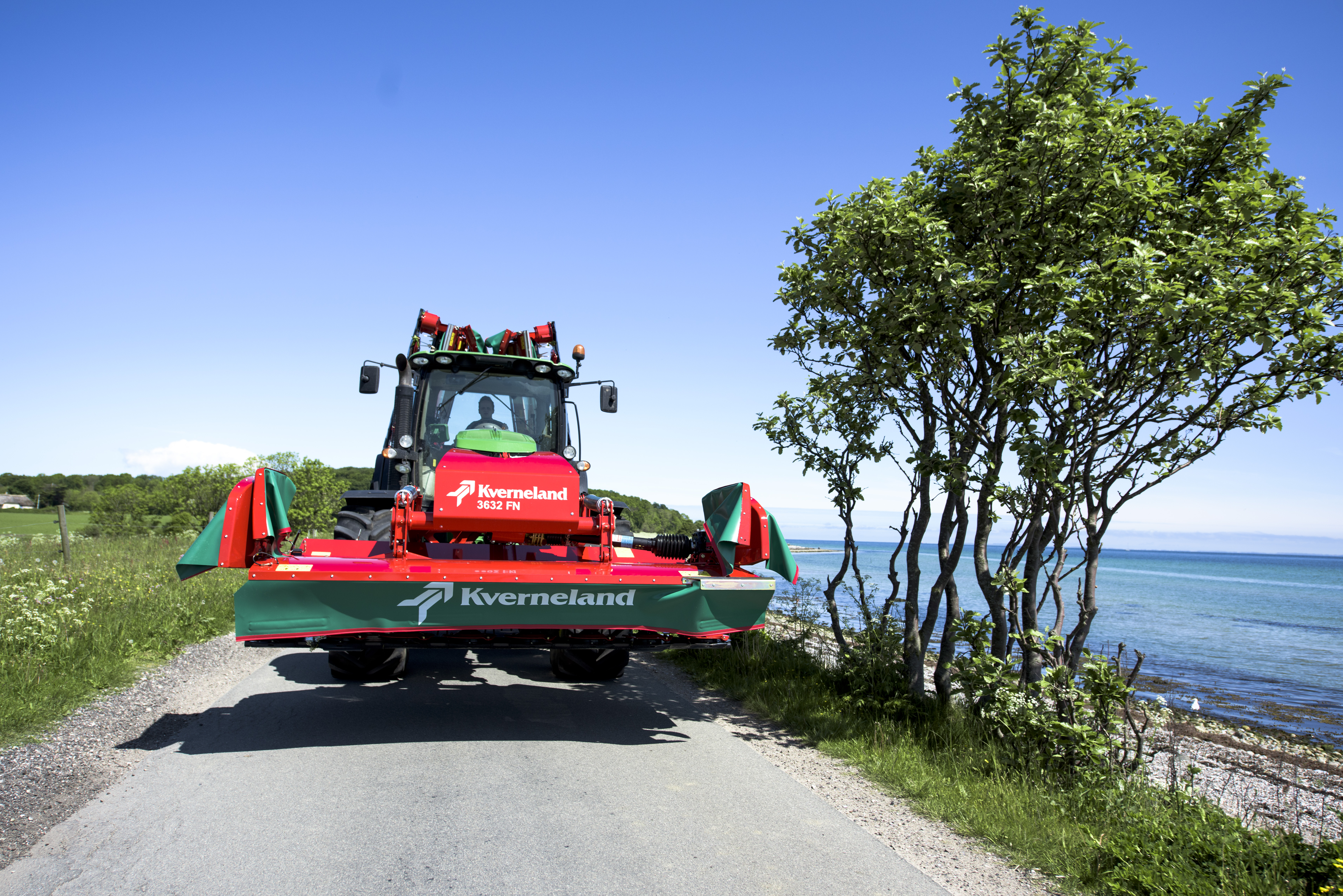

3632 FN 3.16m 8 Nylon Tine Conditioning 60/80 kW/hp
3636 FT 3.57m 9 SemiSwing Steel Tines 66/90 kW/hp
3636 FR 3.57m 9 Roller Conditioning 66/90 kW/hp
