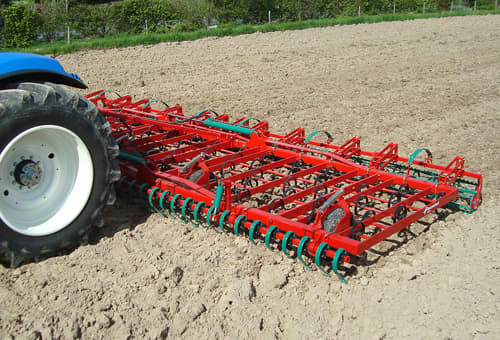

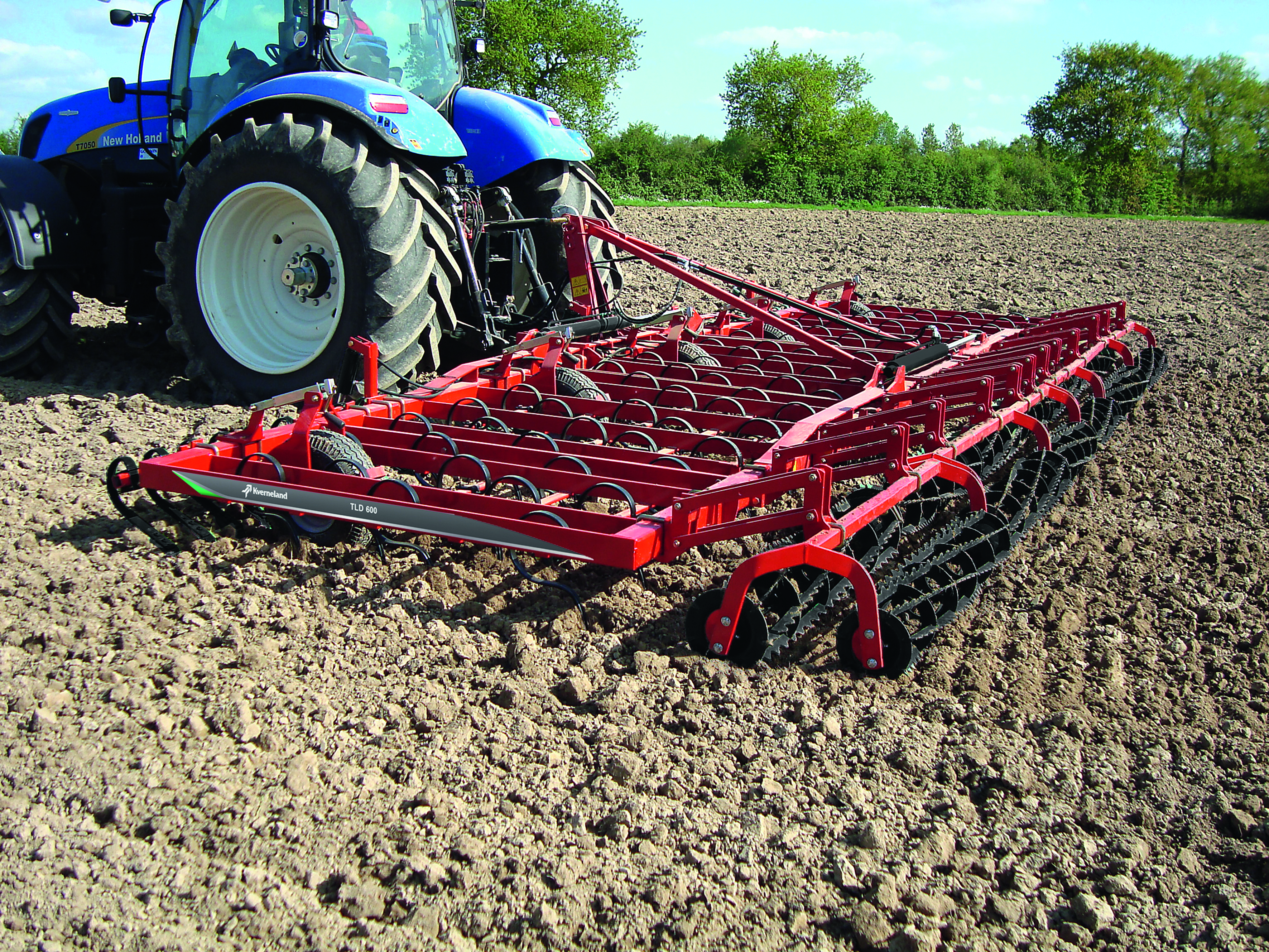

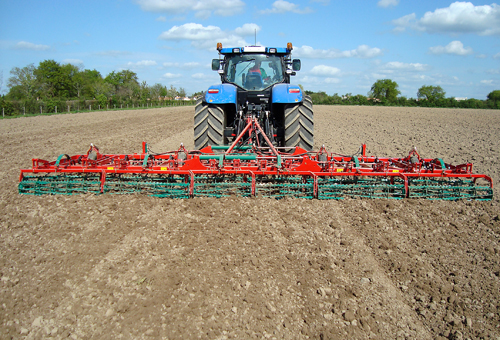

格兰 TLD - Vibro苗床整地机
完美的重量分配设计，精准的耕深控制和优异的仿形能力，可适用于各种地况。
描述
|
格兰Vibro苗床联合整地机 格兰苗床整地机可适用于不同类型的土壤结构，主要源于其极佳的重量分配、精准的深度控制和对地表状况优秀的适应能力。 格兰苗床整地机使优质的土壤微粒存于更低下层，促进种子均匀迅速的萌发，并且蓄水保墒，同时打碎表面土块，有效地降低了土壤表面板结的风险。工作幅宽6.1—9.1米。 格兰TLD苗床整地机采用坚固的三段式折叠机架设计，运输方便，运输宽度小于2.5米。 |
|
优势:
|
型号 |
工作宽度 (米) |
重量 (公斤) |
行数 / 齿数 |
TLD 61 |
6.1 |
1224 |
5/61 |
TLD 71 |
7.1 |
1406 |
5/71 |
TLD 81 |
8.1 |
1583 |
5/81 |
TLD 91 |
9.1 |
1712 |
5/91 |
特征
- The Kverneland TLD has been designed with a robust three section foldable chassis, which helps to limit the overall transport height of the machine. Whatever the model, the transport width is less than 2.50m.
- The chassis is 100 x 100 x 8mm.
- A single hydraulic cylinder is used for folding the 5.10 and 6.10m machines, for the 7.1 and 8.10 machines two cylinders are used.
- Non-return valves secure the lock in working or transport position.

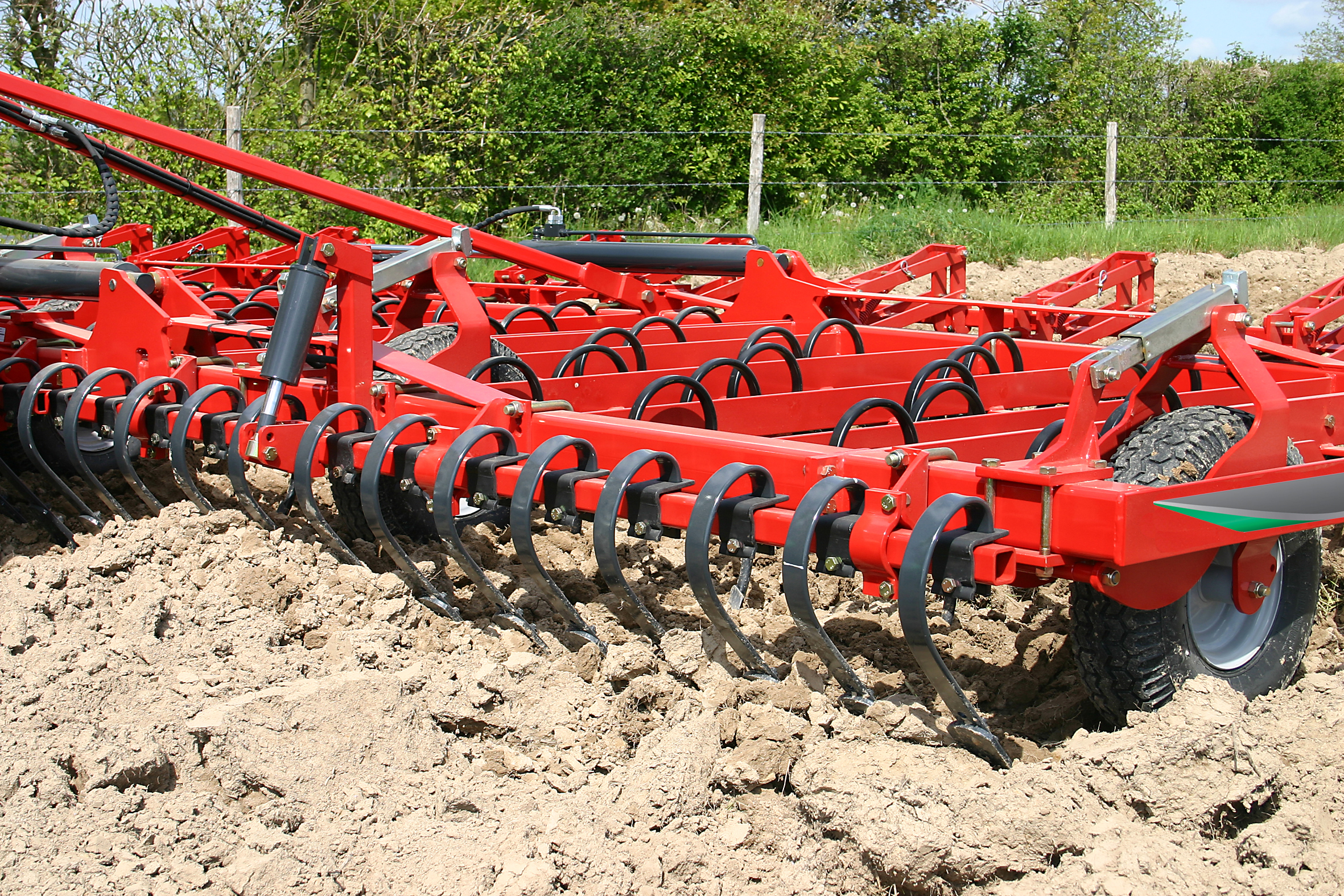

There is a great variety of tines for all conditions.

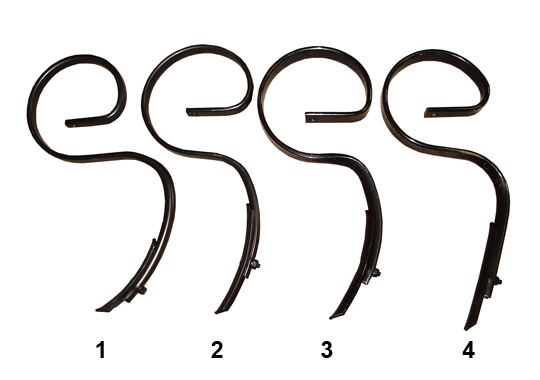

Four types of tines are available according to the type of soil or the work required:
1) Tine DK P22
2) Semi-curved tine 32 x 10mm
3) Semi-curved tine 45 x 10mm
4) Straight tine 45 x 10mm
- Designed for precise seedbed preparation:
- An odd number of wheels within the machine frame provide identical pressure on each wheel.

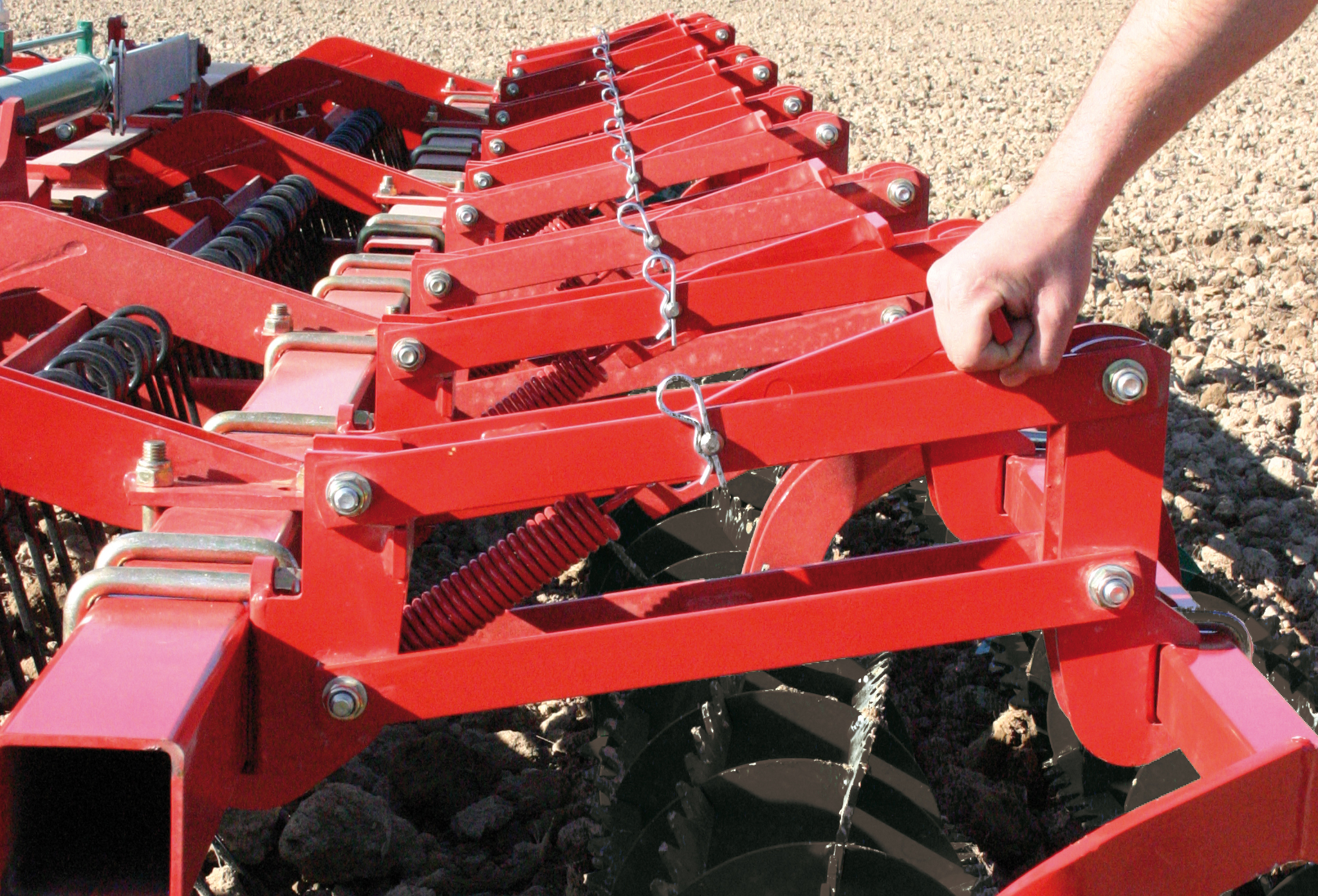

- A graduated scale on the depth adjusters allows precise individual adjustment for each wheel.
- Hydraulic accumulator kit for hilly conditions is available as an option to keep a perfect contour follow-up and protect the frame.

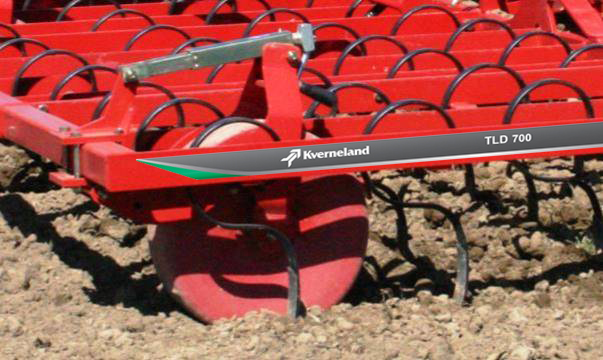

- The TLD can be fitted with steel wheels 500x165 or pneumatic wheels 6.00x9 (10 plys to avoid any puncture).
Supplementary soil preparation can be carried out by the following accessories
- Non-stop levelling board adjustable in height and angle for levelling and crumbling.
- Clod Board: mechanically adjustable or by hydraulics. For perfect crumbling due to vibrating tines. Can be completely lifted if not needed.
- Track eradicators spring-loaded or protected by Non-stop safety system.
- Following finger harrow, adjustable in angle and pressure
- Single crumbler roller, 310mm diameter.
- Double crumbler roller, 310/280mm diameter, mounted on a parallelogram.
- Combi-type harrow to be combined with either single or double crumbler roller.
