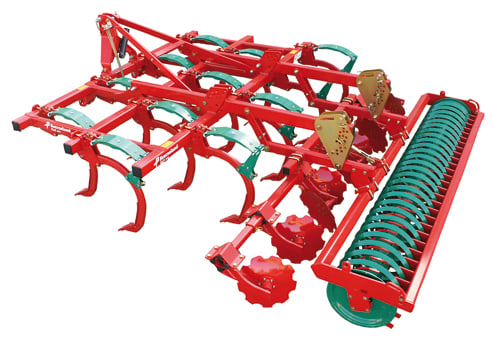

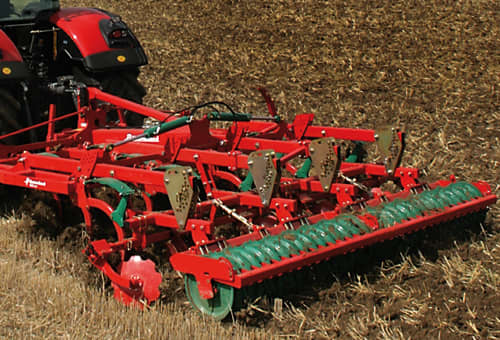

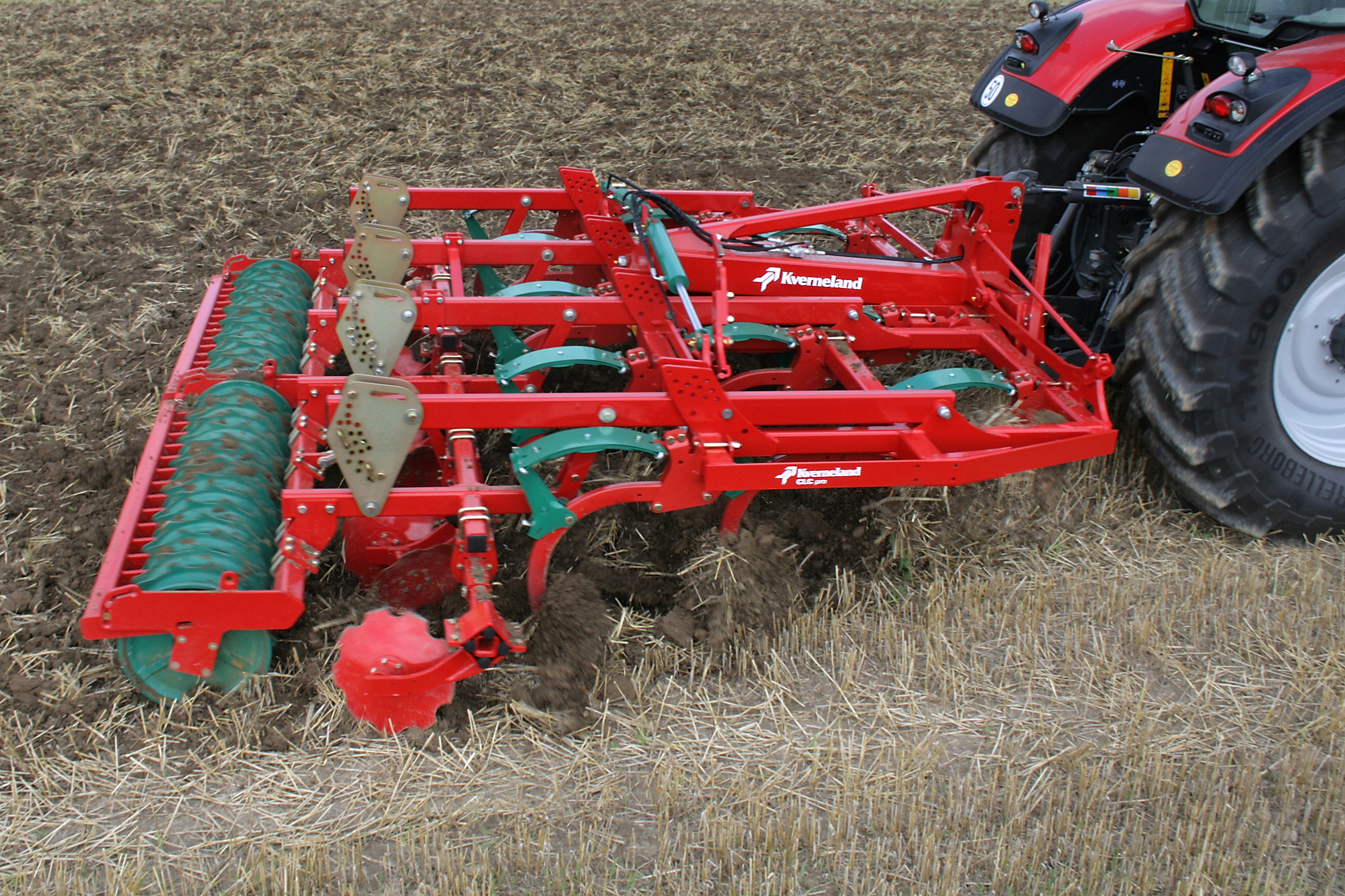

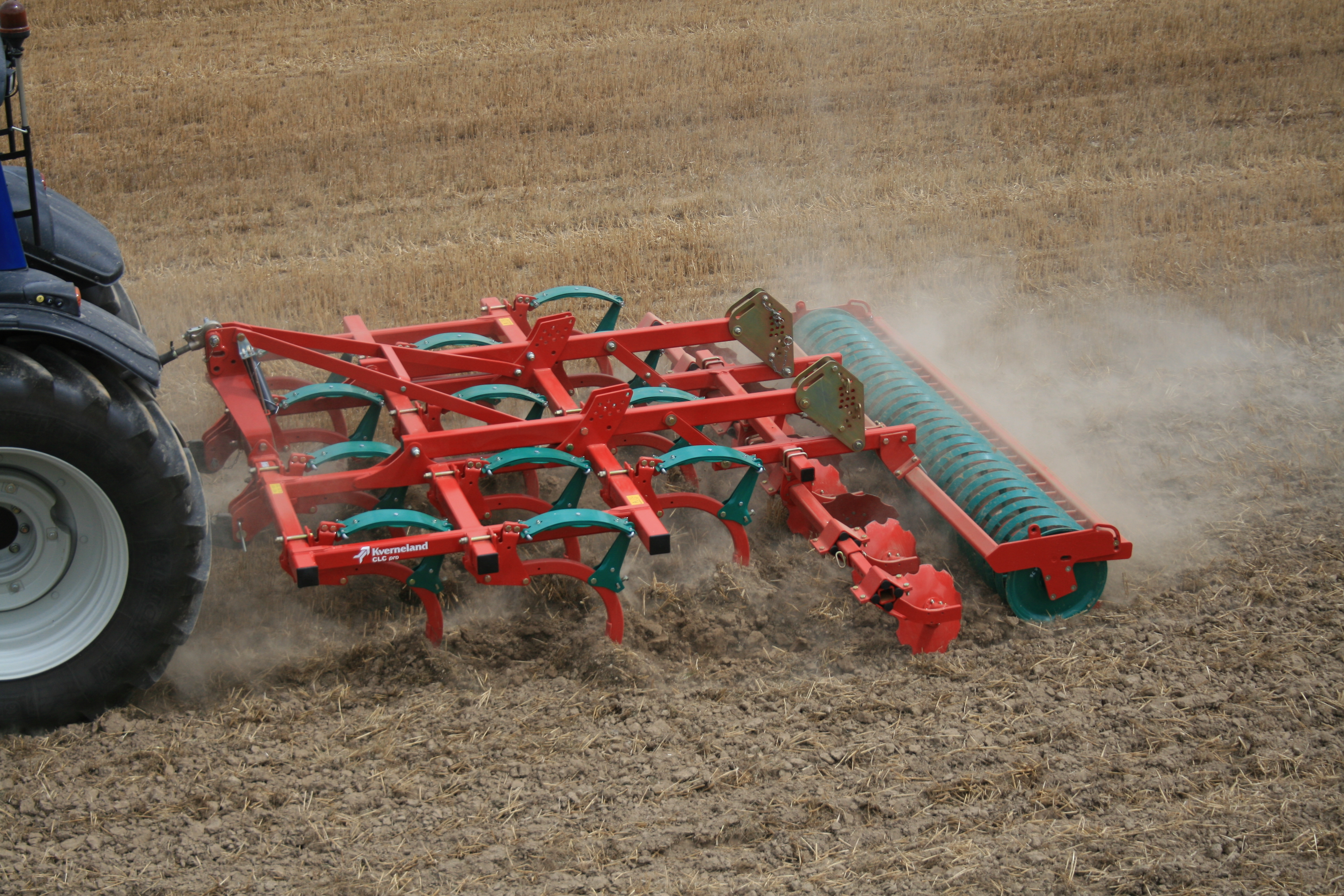

CLC pro - Strong Frame

• The frame design and heavy-duty central beam offers in-field durability even under extreme working conditions.
• The machine offers high underbeam clearance with 870mm to cope with incorporation of high volumes of crop residue.
• The frames can absorb e.g. 240 hp with 3.00m and up to 350hp for the folding implements with 5.0m.
• The material used can bear significant loads while staying reliable and light.
• The weight carried by the tractor is thus reduced and helps saving fuel.

Tines and Shares

• The unique and robust design of the tines incorporates a specially heat treated hollow “C” profile.
• The heat treatment is of the same standards as the beams on the Kverneland ploughs.
• For lighter conditions, Kverneland offer the "C" tine with shearbolt overload protection releasing from 2 tons.
• The Kverneland "C" tine equipped with the "Auto-reset" leaf spring safety system is the perfect choice for hard and stony conditions.

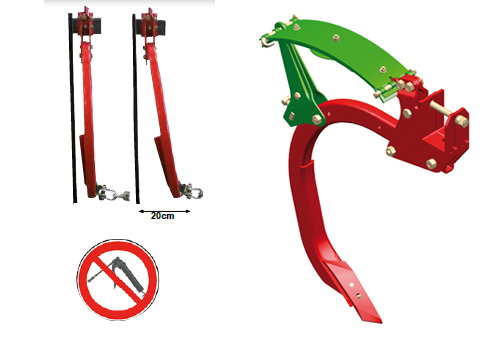

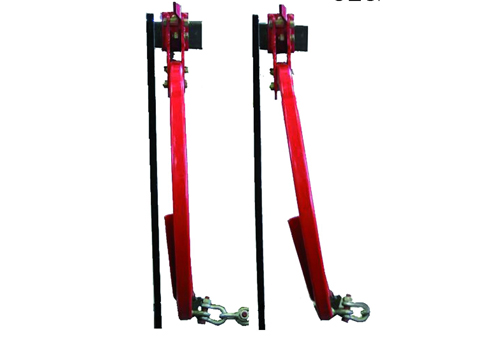

• The tine leg can withstand sideway movements of up to 14cm for the CLC pro, CLC pro Classic, CLC pro Cut and to 20cm for the CLC Evo. This means lower stress to the tine holder and frame structure.
• The "C"-tine system is maintenance-free.

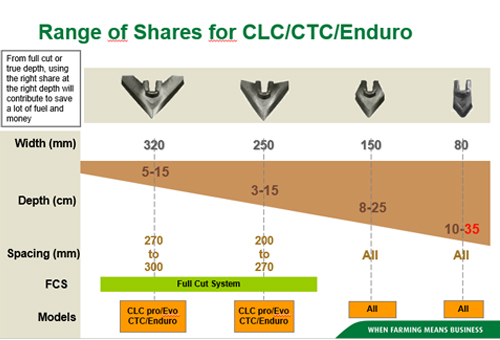

Tines can be combined with a variety of share systems allowing working depths between 5cm and 30cm

• The "C"-tine: with the standard reversible plough point made of high quality steel for maximum service life. This allows to work at great depths even in stony soil - eliminating plough pans and in this way encouraging natural drainage.
• For stubble cultivation the "C" tine can be equipped with 30cm wing shares.

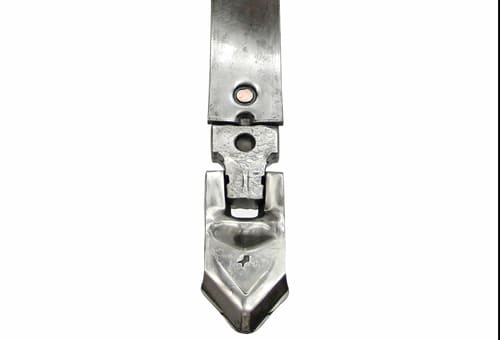

• Two types of carbide points – 80mm and 150mm Tiger point. The special design ensures progressive and high penetration and requires low pulling force. The special shape of the carbide plate resist against aggressive stony conditions. All points available with Knock-on deflectors too.
• Click here for further details on the Knock-on system.

Leaf Spring/Vibromat

• For lighter conditions Kverneland offer the CLC tine with shearbolt overload protection.
• This version of the CLC tine offers the same high quality as that of the „Auto-reset“ tine, and is releasing from 2 tons.
• The Kverneland CLC tine equipped with the “Auto-reset“ leaf spring safety system is the perfect choice for hard and stony conditions.

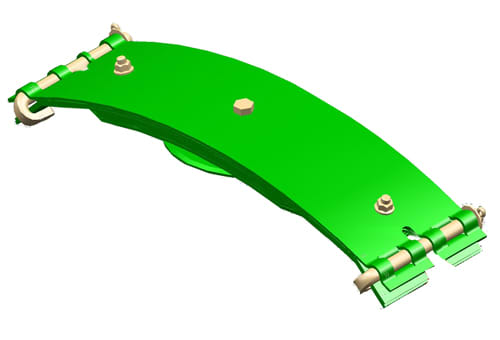

• The well renowned Kverneland leaf spring protects the tines against overload. The tine starts to release with loads over 640 kg. The release force decreases with the release height to protect the frame against high stress.
• All pivot points of the CLC tines are manufactured with wear resistant bushes and bolts of the renowned Kverneland quality.
• Therefore the CLC tine system is maintenance-free.

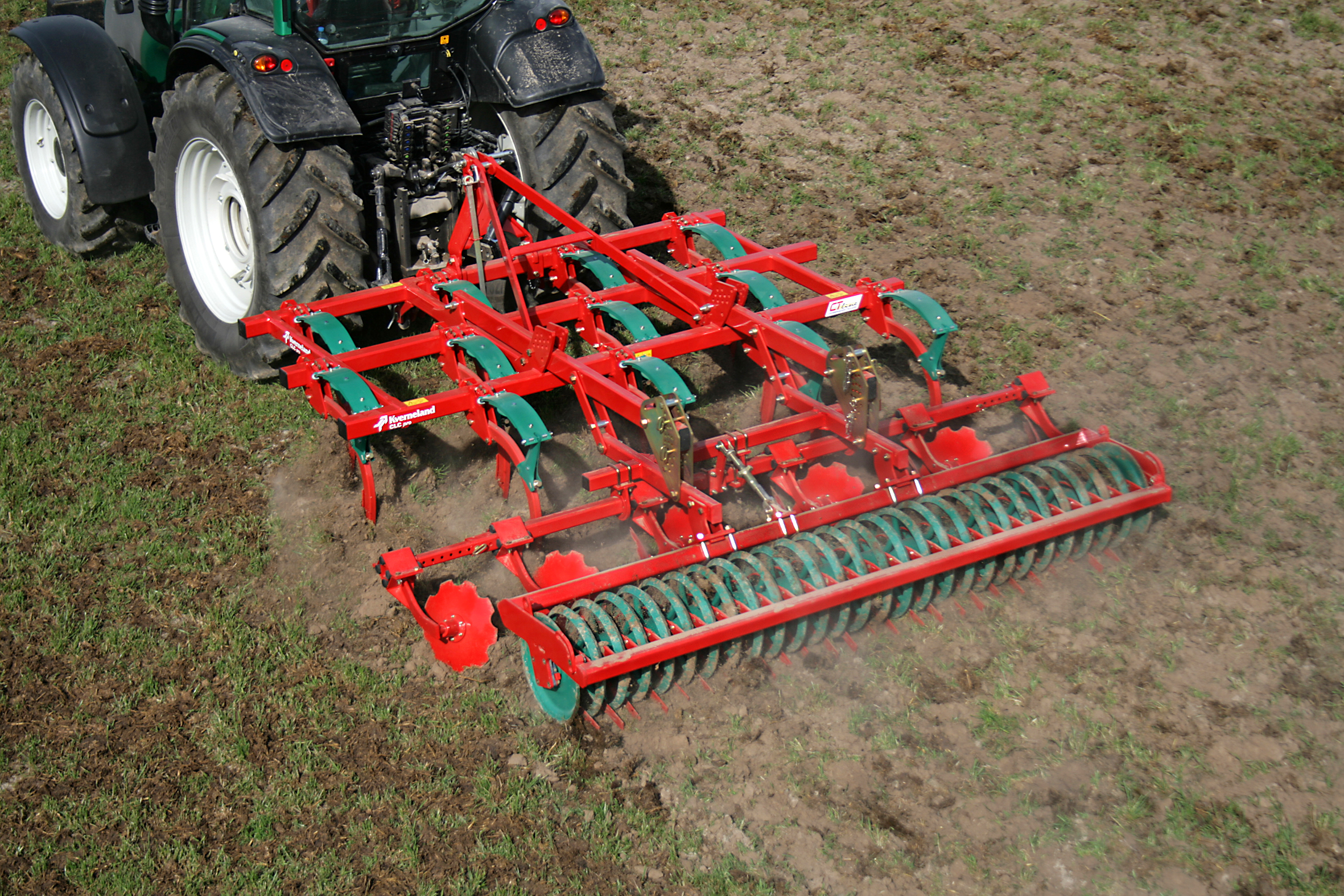

Rear Accessories CLC pro

The CLC pro is the model which can be equipped with the full range of following implements.

Levelling discs:

• Rubber spring loaded, to follow the ground and protect against stones
• Border discs as standard adjustable to the soil flow

Combi disc harrow:

• Combination of a single disc gang with all roller type
• Intensive mixing at shallow depth

Double disc gang ø 510 mm:

• Does a good mixing and incorporation
• Leaves a rough surface with aggregates ready for wintering, interesting at the end of autumn season for preparing spring fields and crops

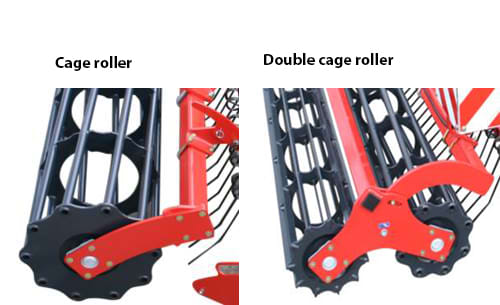

Cage roller ø 550mm - 90 kg/m

• 10 bars for a good loading  capacity and operation in wet conditions
• Effective crumbling action

Double cage roller ø 400mm (tube/flat) - 160 kg/m

• Good crumbling
• Precised depth control

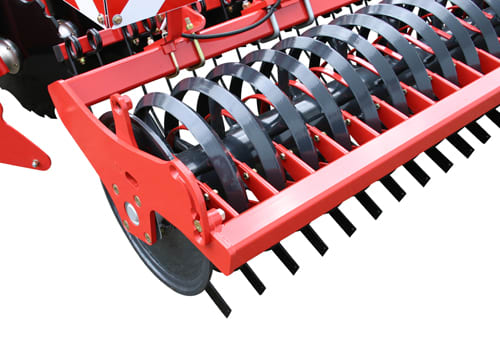

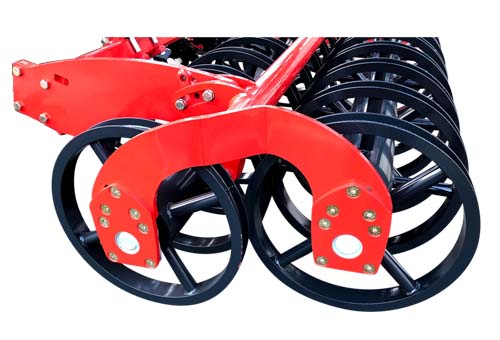

Actipress Twin ø 565mm - 220kg/m without soil

• U-profile for high carrying /rolling capacity in light soils
• Clod breaking also in heavy conditions
• High and homogenous consolidation
• Weight when full of soil: 250kg/m

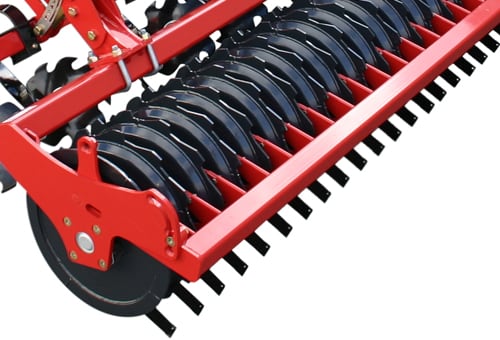

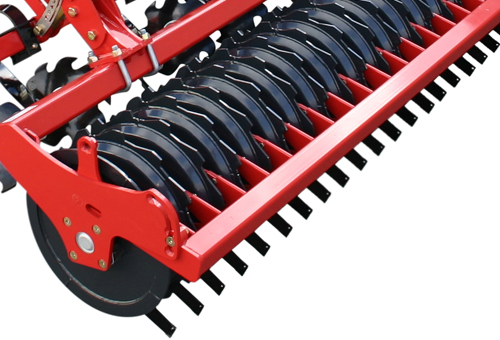

Actipack ø 560mm - 220 kg/m

• The Kverneland Actipack roller displays its superb working qualities especially on medium to heavy soils, also in wet, stony and sticky conditions thanks to the independent skids and knives
• The cutting discs break the larger clods whilst the adjustable knives cut the remaining clods resulting in optimal clod breadown and fine seedbed preparation

Actiring ø 540mm - 160 kg/m

• The Actiring roller is a lighter variant of the Actipack, using the same frame structure and knife system
• The discs have been replaced by a “V” profile ring, this is saving 60kg/m, which is of critical importance for reducing lifting requirements for mounted equipment
• Actiring is not recommended in stony conditions

Actiflex roller ø580mm - 160 kg/m

• The Actiflex roller has been made to create an intensive mixing under all conditions, even stony ones
• The rings are made with spring steel to have a high resistance against stress at high speed
• Actiflex rings are separated by skids to prevent any accumulation inside the roller
• This roller is the ideal tool to create a nice seedbed and enhance the weeds regrowth after harvesting
